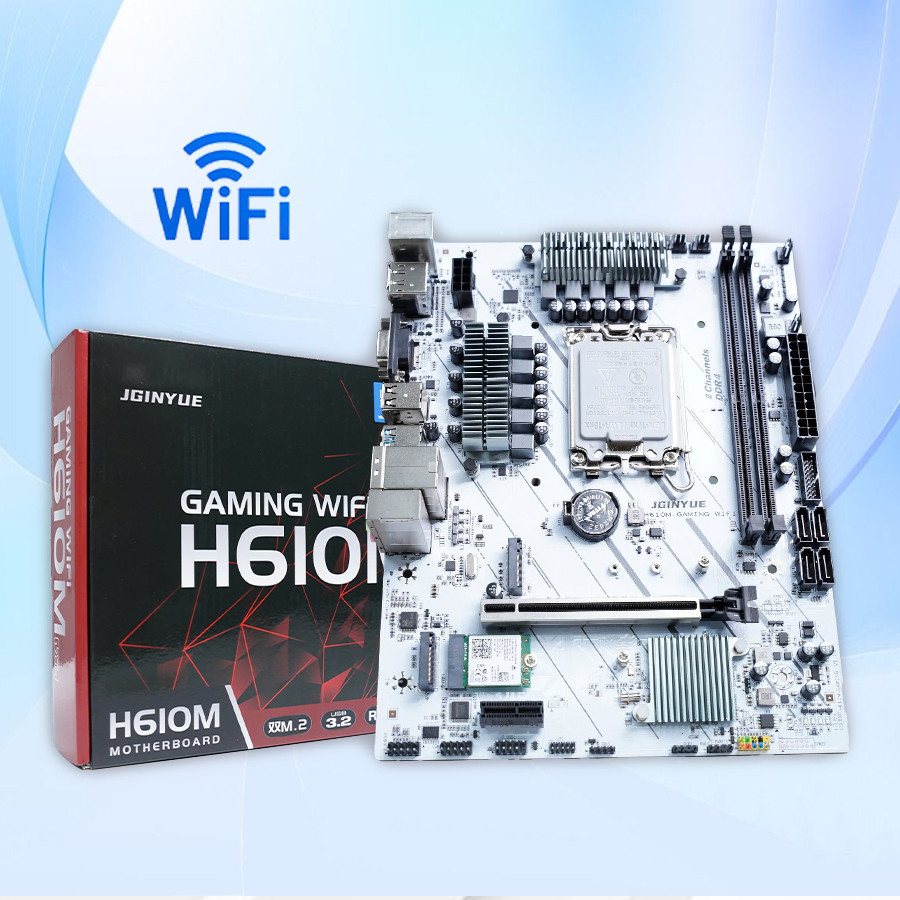

MAIN JGINYUE H610M-GAMING WIFI DDR4 ( WiFi / Bluetooth)

1.600.000 đ

Bảo hành: 36 tháng
Trong kho: Còn hàng

Thông tin mô tả

MAIN JGINYUE H610M-GAMING WIFI DDR4 ( WiFi / Bluetooth)

Supports Intel's 12th, 13th, and 14th generation LGA1700 Supports dual channel with 2 DDR4 slots 2133 to 3200MHz 4 rear USB 2.0 and 2 USB 3.2; 1 front pin for USB 2.0 and 1 USB 3.2 1 PCIExpress X16 4.0 slot; 1 PCIExpress X1 slot 1 Gigabit network card interface; 1 DP interface; 1 HDMI interface; 1 VGA interface 2 M.2 NVME protocol 3.0 interfaces (1 X4 rate, 1 X2 rate) 1 WiFi interface board mounted 9560NGW module 1 BIOS clear button Two 4-pin fan pins; Two 3-pin fan pins Không hỗ trợ chế độ ngủ (sleep)

Số lượng

Thêm vào giỏ hàng Đặt hàng

Thanh toán khi giao hàng

Thông tin chi tiết

Motherboard model	H610M-GAMING WIFI
Chipset	intel H610
CPU pins	Supports Intel's 12th, 13th, and 14th generation LGA1700 platform processors
Memory slot	2 DDR4 memory slots
Memory capacity	Maximum support for 64G
Memory standard	Supports dual channel DDR4 frequencies of 3200/3000/2933/2800/2666/2400/2133MHz (supports XMP technology/actual situation may vary depending on different CPU and memory configurations)
Display interface	1 HDMI interface, 1 DP interface, 1 VGA interface
Storage interface	4 SATA3.0 6Gbps interfaces; 2 M.2 nvme protocol 3.0 interfaces (1 X4 rate, 1 X2 rate)
USB interface	Two USB3.2 and four USB2.0 are placed at the back; Front 1 USB 3.2, 1 USB 2.0
Expansion Slots	1 PCI Express x16 4.0 slot; 1 PCI Express x1
Wireless interface	1 WiFi interface board mounted 9560NGW module
Onboard sound card	Realtek ALC897
Onboard network card	Realtek 8111H
Power supply socket	24Pin+8Pin
Fan pin	Two 4-needle needles; Two 3-pin needles
Number of power supply phases	10 phase power supply
RGB pin	Two 5v3 pin RGB interfaces
Main board size	24cmx19cm; M-ATX
Support system	Windows10；Windows11
